Snap Switch

This switch is used in the Interact Switch and has holes in the contacts of the switch to allow the cable to be threaded through to make soldering easier.

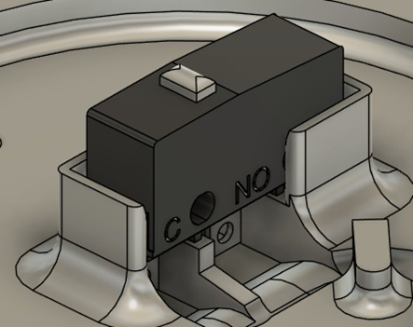

A photo of a snap switch a render of a snap switch in place in the interact switch

For this part, there are several primary dimensions used to create a well-fitting press fit retainer. The primary dimensions are:

  • Press Fit Length: The length of the press fit rectangle that fits the switch
  • Press Fit Width: Not pictured in the below cross-sectional diagram, it is the width of the press fit rectangle that fits the switch.
  • Press Fit Depth: The minimum depth from the top of the walls of the retaining wall to the bottom of the switch.
  • Minimum Contact Clearance: The minimum required distance for the space between the bottom of the switch seat and the bottom of the switch. This gives space for the contacts of the switch to sit. The switch contacts are only 4mm, but extra space is needed to give space for solder if the switch is not soldered well.

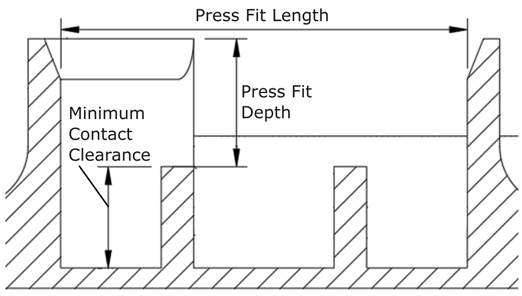

A cross section of the mount in the interact switch with the key dimensions labeled.

Snap Switch Press Fit Measurements
Press fit length 20.2 mm
Press fit width 6.4 mm
Press fit depth 7 mm
Minimum Contact Clearance 5 mm

Purchasing

Snap Switches can be found at these links:
Digikey Snap Switch DigiKey Link
Mouser Snap Switch Mouser Link
